[ New Product ]


Personal Alarm – Wallet Guardian

Description:

 Wallet Guardian is a cutting edge product that protects your belongings all the time… 24/7!  This innovative product using digital radio frequency with duplex communications, by detecting distance of your belonging from yourself, and alarm will be triggered when the your belonging is exceeding a set distance from you.



Wallet Guardian works in pairs and very user friendly, easy to operate and convenient to carry along.  It consists of two parts: Master unit and Slave unit.  You keep the Master unit along with you, and tag the Slave unit with your belonging (wallet, luggage, cell phone, laptops, etc) you want to protect.  The Slave unit is credit card size with approximately 6mm thin only, in which you even can put it into credit card slot of your wallet (when your wallet is the object you want to protect)!  While the Master unit is light and small as your key chain, you can keep it along with you all the time without causing any extra inconvenience.



ONE Master can protect SIX Slaves at the same time!  You can also set different distances (from 1 meter to 50 meters) with different Slaves after you pairing it with the Master.

How it works:

By using 2.4GHz digital radio frequency, Master communicates with six Slaves at the same time to ensure they all are within range and will notify the user when any of the Slaves are out of the set distance.  Also Slave checks with Master to see how far it is, if it’s out of the set distance, Slave will sound alarm automatically.

First pair your Slave units with the Master unit (1 Master can pair 6 Slaves max), set the alarm distance on each Slave unit per your desire. Then put your Slave unit into your wallet, or tag it with the belonging you want to protect.

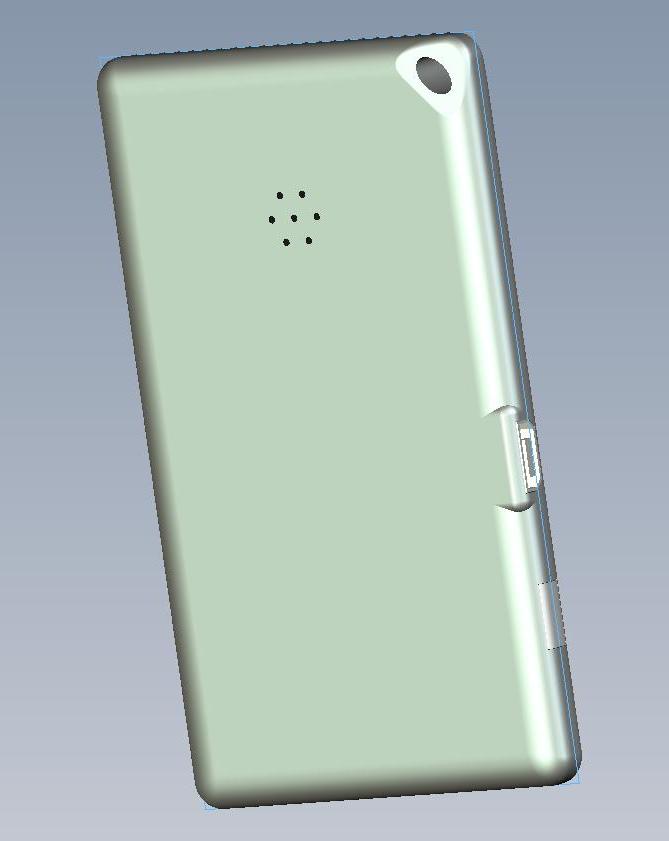

 When the Slave (your belonging) is out of the set distance, the Slave unit will sound automatically with a loud, sharp alarm for 1 minute (will alarm again if you press Select button at Master for over 5 sec). Slave back At the same time your Master unit (that you carry along with you) will alert you by sound (Sound Mode), or vibration (Silent Mode), or both, per your setting.  At this time, you can immediately know your belonging is too far away from you (being stolen, or left behind).

 When the Slave is within range, by pressing the Select button (over 5 sec), the selected Slave unit will sound for 1 min (will stop if you press the Select button again) so you can quickly locate your belonging(s) no matter when you are in close range or far away (Master control range 100m).

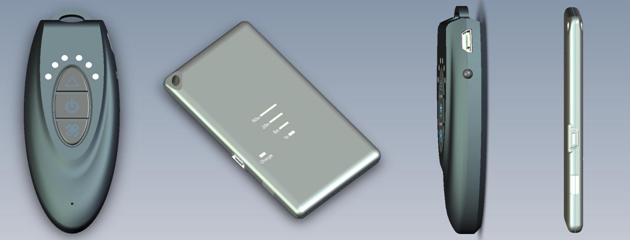

Product Outlook:



Specifications:

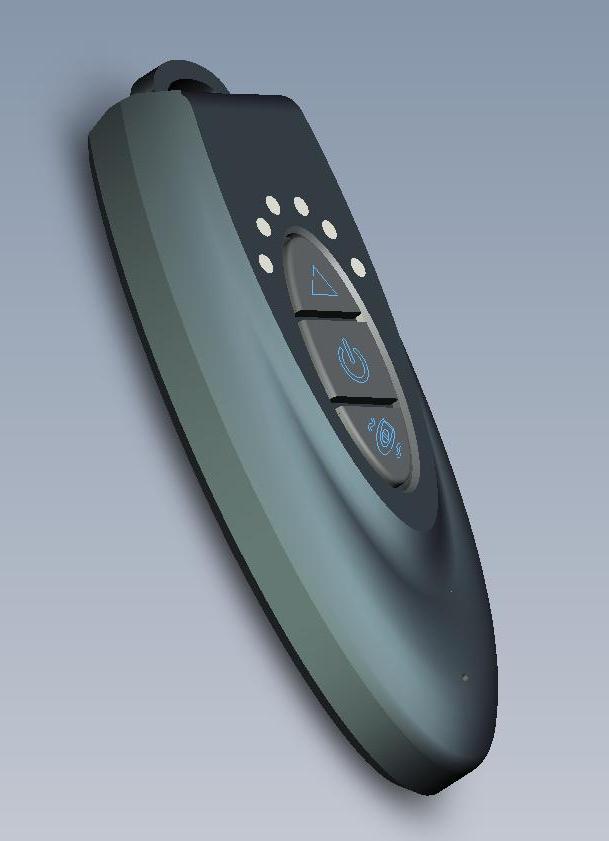

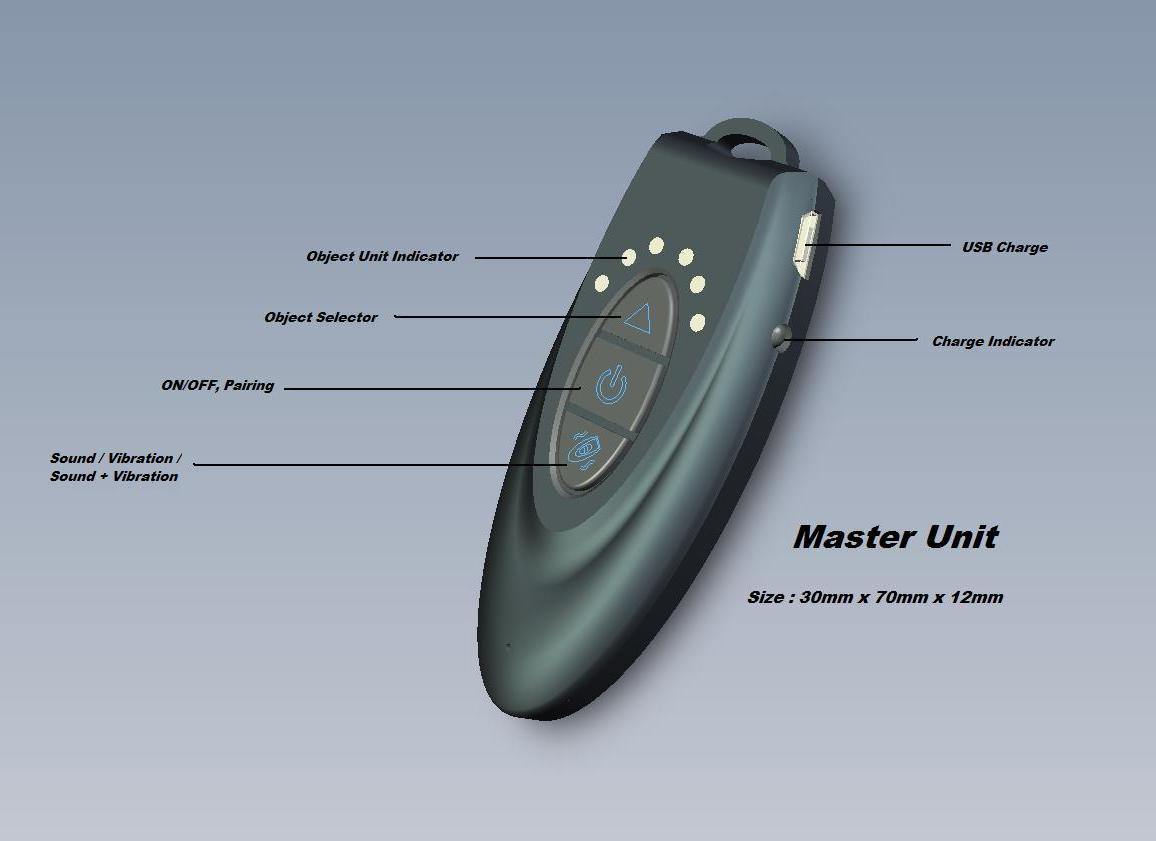

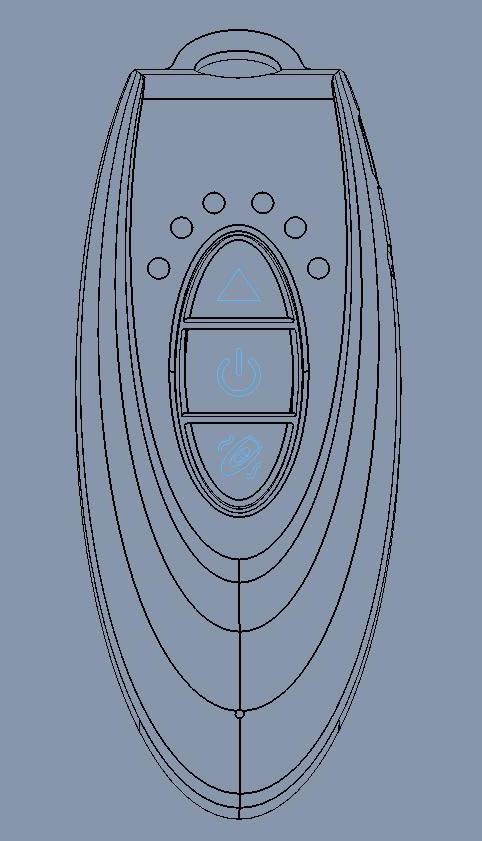

Master unit

-          Operates at 2.4GHz radio frequency

-      Size30mm x 70mm x 12mm

-          Standby time after fully charged : over 1 week

-          Manually trigger alarm by pressing Select button at Master unit for 5 sec.

-          Manual alarm control distance : 100m

-          Option Setting : Sound Mode / Silence Mode (Vibration) / Sound + Vibration

-          1 Master can monitor 6 Slaves at the same time

-          Alarm Duration : Continue until any button pressed.

-          USB Chargeable

-          Charging Indicator

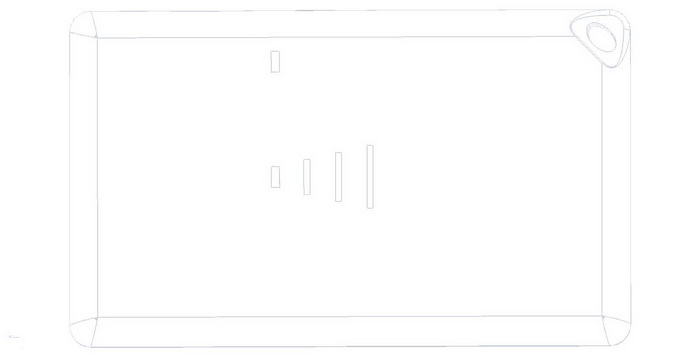

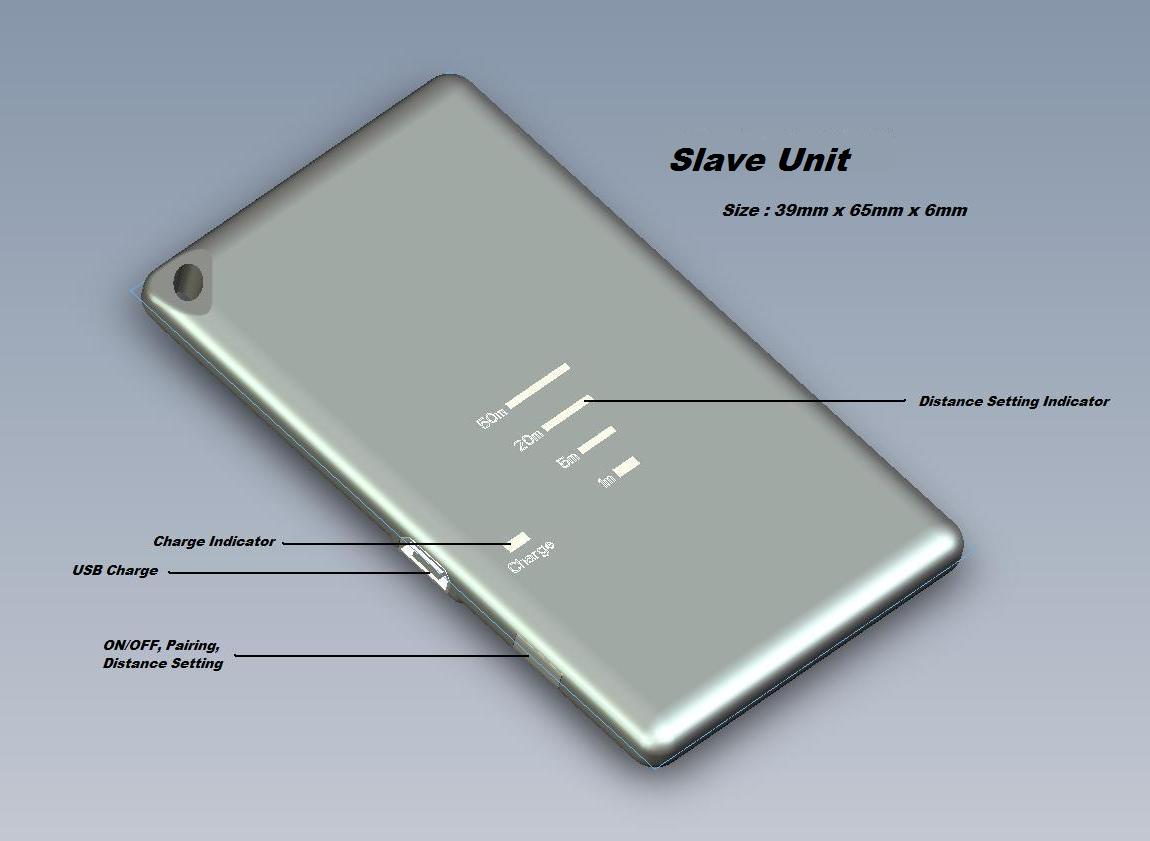

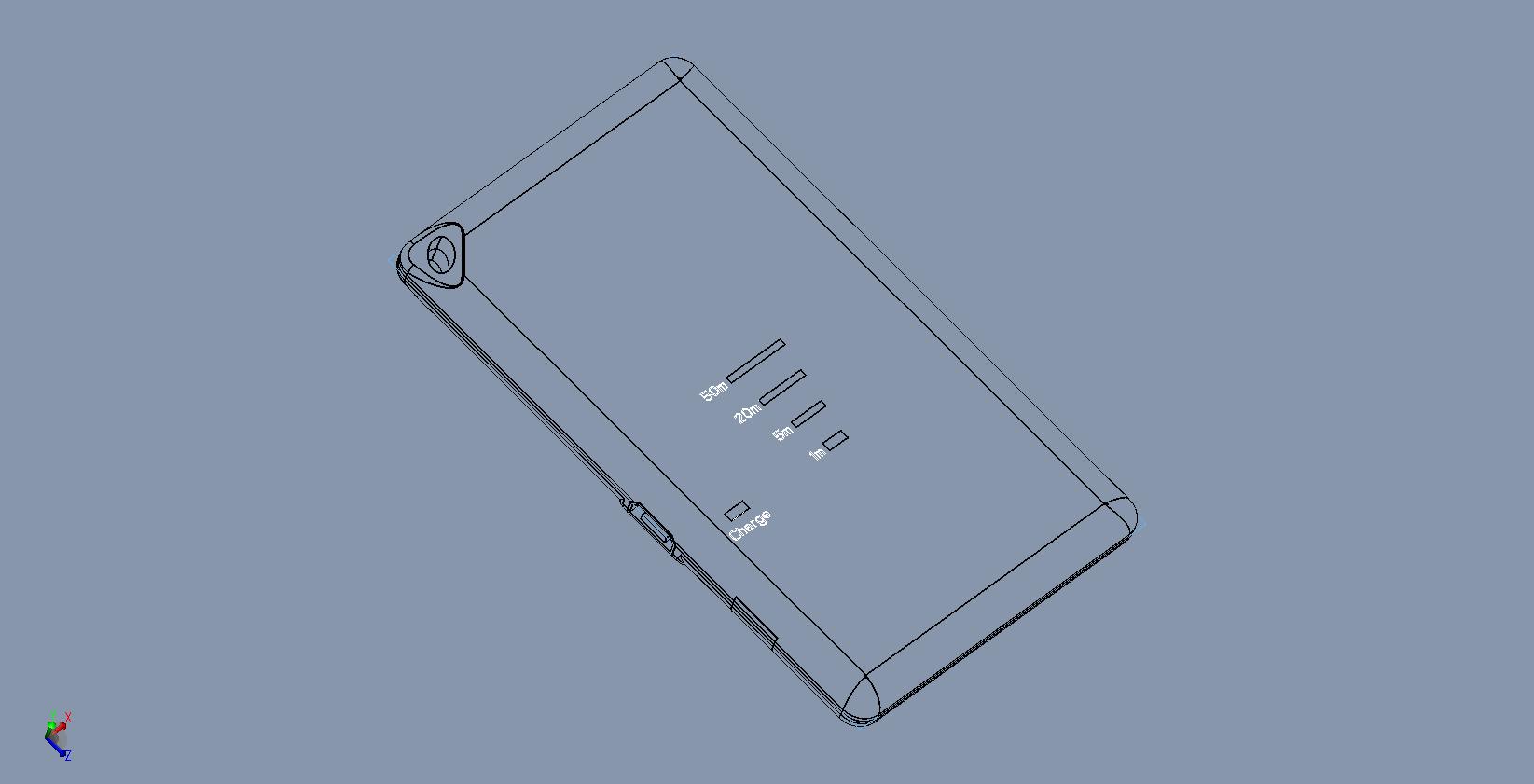

Slave unit

-          Operates at 2.4GHz radio frequency

-          Size 39mm x 65mm x 6mm

-          Distance Setting Options : 1m / 5m / 20m / 50m

-          Standby time after fully charged : over 1 week

-          Automatic Alarm (sharp, loud sound alarm) for 1 min when out of set distance

-          Manually trigger alarm by pressing Select button at Master unit for 5 sec.

-          Alarm Duration : 1 min

-          USB Chargeable

-          Charging Indicator
